Machine 06 of 09

3 / 5 LAYERS AUTOMATIC CAST STRETCH FILM MACHINE (1.5 M)

MODEL: (XHD-(65-90)*1850)

3 Layers / 5 Layers Automatic 1500 mm LLDPE Cast Stretch Film Machine is designed for the continuous production of high-quality LLDPE cast stretch films with excellent transparency, uniform thickness, and superior tensile strength. The machine supports both 3-layer and 5-layer co-extrusion configurations, providing flexibility for manufacturing hand stretch film, machine stretch film, PE cling film, and agricultural silage film. Equipped with an advanced control system, precision extrusion technology, and energy-efficient components, it ensures stable production, high output, and reliable performance for industrial packaging applications.

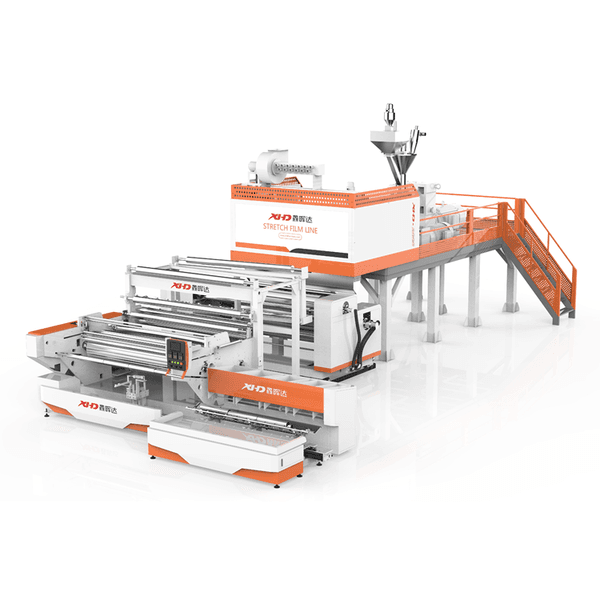

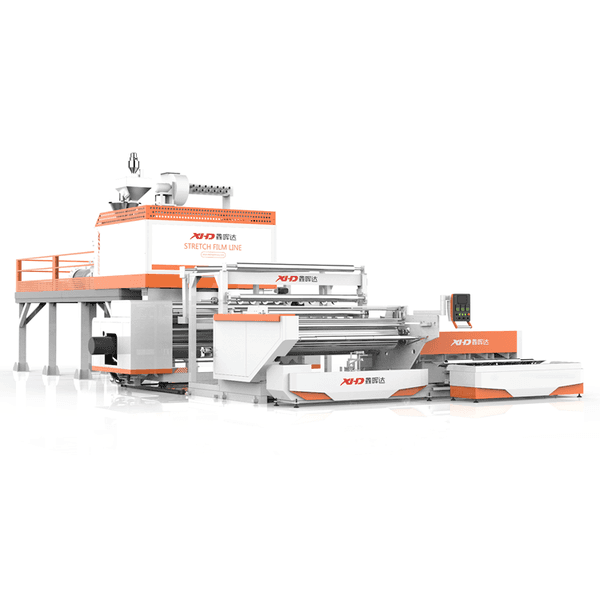

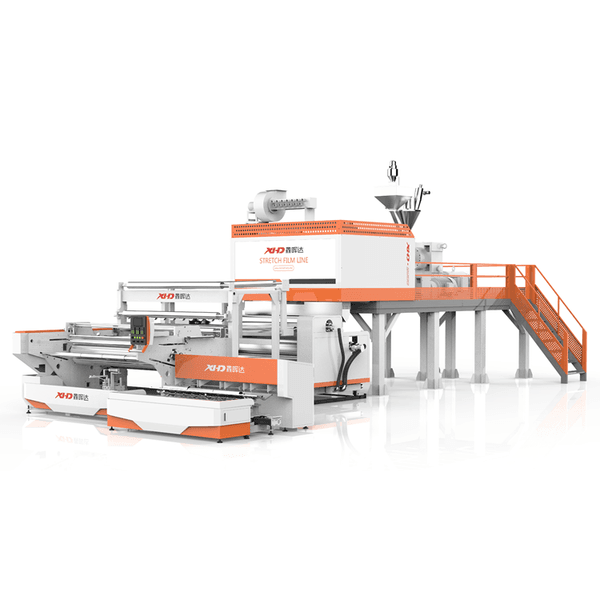

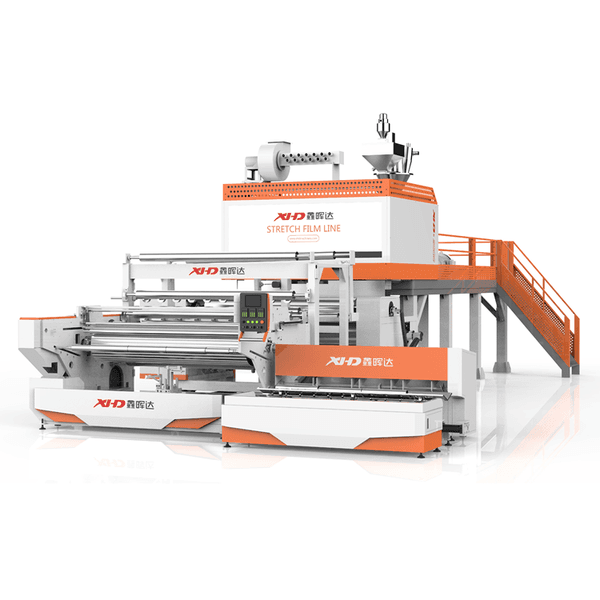

3 / 5 Layers Automatic Cast Stretch Film Machine (1.5 m)
100–200 kg/h
Output
1500 mm
Film Width
CBA Three Layers
Layers
150 m/min
Line Speed
Machine in Action

WATCH IT RUN

- Machine Model: (XHD-(65-90)*1850)

Key Features

MACHINE CAPABILITIES

Multi-Layer Co-Extrusion
Automatic Thickness Control
High Output Production
PLC Touch Screen
Energy Efficient Design
Stable Cooling System
Continuous Production
Easy Operation
Technical Specs

FULL SPECIFICATIONS

ModelXHD-(65-90)*1850
Power Supply180 kw
Installation Power380V/220V
Raw MaterialLLDPE, LDPE & MLLDPE
Useful Film Width1500 mm
Film Thickness12–50 μm (min 8 μm)
Layer StructureCBA Three Layers
Designed Linear Speed150 m/min
Extrusion Output100–200 kg/h
Dimensions8.5 × 5 × 3.4 m
Weight8500 kg

What's Included

Delivery and installation across Egypt
Complete machine setup and calibration
Comprehensive operator training (2–3 days)
Full spare parts and mold set
Operation manual (Arabic + English)
1-year parts warranty
Post-sale technical support

READY TO START
YOUR PRODUCTION?

Contact El Rasheed today for a detailed consultation, live machine demonstration and pricing tailored to your production needs.
